Herbold Meckesheim co-develops pilot plants for chemical recycling
The agreement is rightly called historic: Recently, the United Nations Environment Assembly (UNEA) passed a resolution providing a global agreement to curb plastic waste. By the end of 2024, a legally binding convention is to regulate the entire life cycle of plastics. Bitterly necessary, after all, according to UN figures, around 400 million tons of plastic waste are generated worldwide every year, of which only about nine percent is recycled. In addition, the dependence on oil is currently being brought home to us in a frightening way. As a result, a main focus is on chemical recycling of plastics. However, only some 90 projects and just over two dozen plants, most of which are in trial operation, are known to date. Two pilot plants for commercial operation are currently being built in the United States, using, among others, technology from Herbold Meckesheim.
The special machine builder manufactures production equipment and machinery for the mechanical recycling of plastics, may it be pure industrial waste or contaminated plastic waste. And without mechanical processing of the waste, without shredding, washing, separating, drying and compacting, subsequent chemical processing cannot succeed. Herbold Meckesheim supplies the mechanical part for the recycling lines. For the following chemical breakdown into the original building blocks of the plastics – depolymerization – state-of-the-art processes include solvolysis, gasification and pyrolysis, amplified by thermocatalysis and hydrocracking.
« Implementing appropriate solutions is anything but trivial, » emphasizes Achim Ebel, Vice President Sales at Herbold Meckesheim. This starts with logistics, he says, with the decentralized collection, separation and spacious merging of plastic waste. According to the latest figures from the Federal Statistical Office of Germany for 2020, household waste accounted for more than ten percent of a total waste volume of 417 million tons. Per inhabitant, this amounted to 476 kilograms – 194 kilograms of which was typical household and bulky waste without separately collected biowaste or reusable materials. Of the 1.28 million tons of plastics (including composite materials with mainly plastic content) from used retail packaging from private end consumers, around 53 percent had been recycled in 2019.
Figure 1: High production volumes will be required for chemical recycling in the future.
Photo: Herbold Meckesheim
In order to the enormous mass of material to be recycled and the general product responsibility, the waste management industry resembles more and more the chemical industry in terms of the processes with its highly automated plants and high throughputs. The only difference is that the latter is much better off with homogeneous basic materials – unlike the highly heterogeneous feeding material of waste recovery processing. Here, the logistical aspect is joined by the technical one, explains Herbold sales manager Ebel. The challenge, he points out, is to obtain mono-fraction plastics from the inhomogeneous material streams in such purity degrees that downtimes will be avoided in the further course of the process. In addition, metallic and mineral impurities must be removed in order to keep wear on the machine and plant components as low as possible.

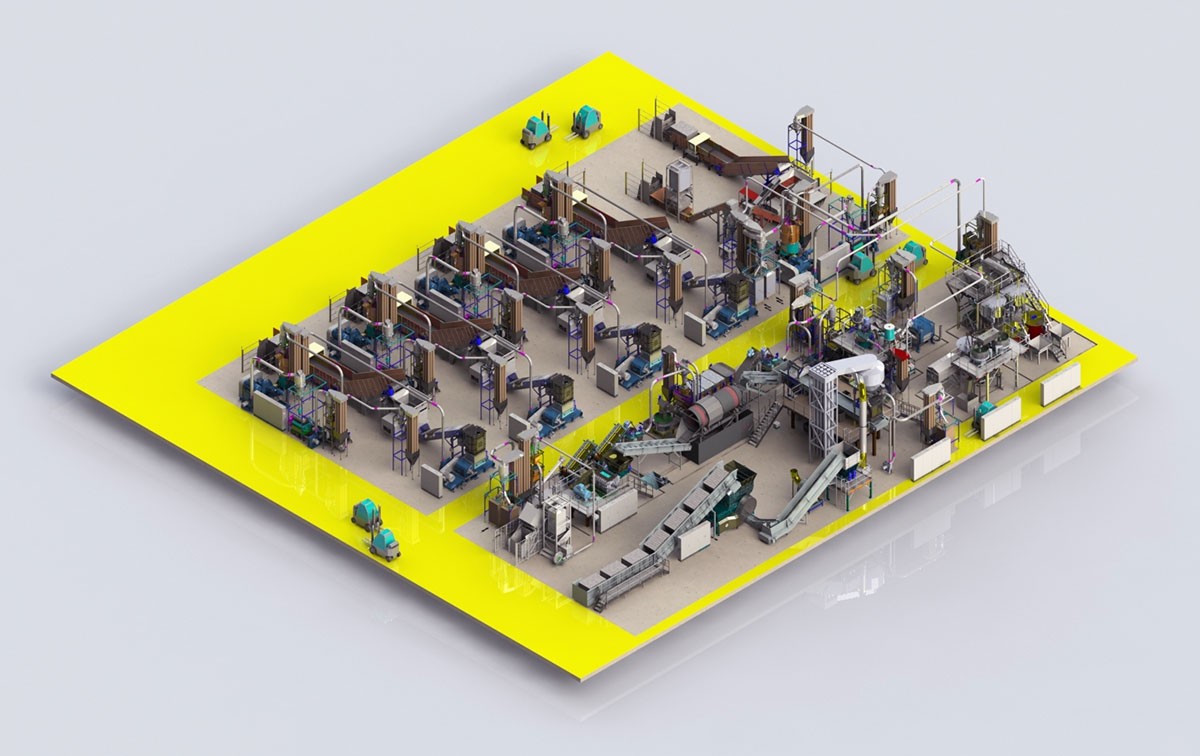

Figure 3: Schematic illustration of a mechanical stage in a plant for chemical recycling as an example.
Graphic: Herbold Meckesheim
All this will have to be implemented according to dimensions that recycling plants have hardly been able to achieve up to now. If a common line today has a production volume of about two to three tons per hour, it will be necessary to increase the output tenfold in the future in order to generate sufficient input material for the large-scale plants required in view of the waste volumes. At the same time, according to Achim Ebel, it is important to strike a reasonable balance between cost and benefit. « That’s why individual solutions are needed, such as those currently being developed by Herbold Meckesheim as a mechanical stage in chemical recycling. »
